MS2100L - CorrTran AQUA

LPR 4-20mA / HART® Transmitter

View PDF version
User's Manual in PDF
CorrTran Configuration Tool (download)
Metal Samples' CorrTran AQUA is a compact corrosion transmitter used in the water treatment industry that measures general corrosion, localized corrosion (pitting), and conductance, and transmits that information to operators via 4 to 20mA / HART® protocol in real time. The corrosion rate or pitting factor is configured as the primary variable using a standard 2-wire 4 to 20 mA output. The remaining outputs are configured as secondary and tertiary HART variables.

The CorrTran AQUA utilizes state-of-the-art algorithms and data analysis techniques to accurately measure general corrosion rate and pitting.  Harmonic distortion analysis (HDA) is applied to improve the performance of the industry-accepted linear polarization resistance (LPR) technique used to measure corrosion rate.

To further enhance the performance, an application-specific Stern-Geary variable (B value) is calculated and updated every measuring cycle. There is no need to manually update the B value because of process changes. During the measurement cycle, the CorrTran AQUA also performs an automated electrochemical noise (ECN) measurement, which in combination with the corrosion rate data can provide a measurement of localized corrosion (pitting).

The CorrTran AQUA works with Metal Samples three-electrode CorrTran style probes and electrodes.  Probes are available in a variety of mounting types and materials to suit almost any type of installation.

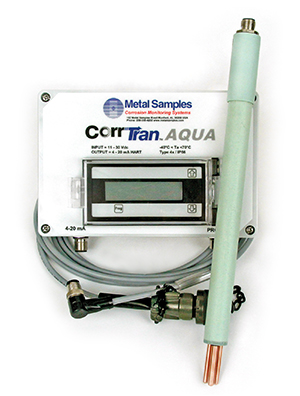

Probe shown in photo not included with transmitter
Features
  • On-line corrosion monitoring, multivariable
  • Install in an existing coupon rack
  • 2-wire, 4 to 20 mA transmitter, HART interface
  • General corrosion, localized corrosion (pitting), and conductance monitoring via HART
  • Stern-Geary B value automatically updated for changes in the process
  • Optional local LCD display

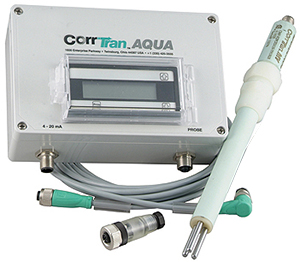

CorrTran Aqua with Display

CorrTran Aqua without Display

Technical Specifications

Model MS2100L CorrTran AQUA LPR 4-20mA/HART Transmitter

Physical Data
Instrument Weight: 1.1 lb (500 g)
Instrument Dimensions: 7.1” x 5.4” x 2.4” (180mm x 137mm x 61mm) without LCD display
7.1” x 5.4” x 3.4” (180mm x 137mm x 86mm) with LCD display
Operating Temperature: -40° to 158°F (-40° to 70°C) without LCD display
14° to 122°F (-10° to 50°C) with LCD display
Enclosure Material: ABS
Degree of Protection: IP66, NEMA 4X

Electrical Data
Electrical Connection: 2-wire 4-20 mA with HART
Supply voltage: 11-30 VDC without LCD display
15-30 VDC with LCD display
Current Consumption: 4 to 22.5 mA
Maximum Load (at 24 V DC): 575 Ω with high alarm / 650 Ω without high alarm (without display) / 850 Ω without high alarm (with display)

Terminal Assignments

2-wire connection with HART (DC)


Measurement Data
Probe Type: 3-Electrode LPR
Measurement Type: General Corrosion1   Localized Corrosion   Conductance
Measurement Unit: mpy (mils per year) or
mmpy (mm per year)
Unitless microSiemens (µS)
Mesurement Range(s): Default Range:
0 to 40 mpy
(0 to 1 mmpy)
Low Range: 0.0 to 0.01
Medium Range:  0.01 to 0.1
High Range: 0.1 to 1.0
5 to 333,333
  Maximum2: 400 mpy
(10 mmpy)




  1 Instantaneous corrosion
rate available as a primary variable.  Average corrosion rate available via HART.
2 Range adjustable via
HART or factory set.

Factory Settings: B value (Stern Geary value): 25.6 mV
K value (corrosion constant): 11800 (2e- in reaction)
Measurement Cycle: 4 to 34 minutes (depends on configuration)


Output Data
Output Signal: 4-20 mA with HART protocol
Alarm Events: Alarm on over-range
Alarm Types: Digital and Analog (configurable)
Analog Alarm Options: Current high (22.5 mA) with auto-reset (default), current high with manual reset, or none
Load: Minimum load for HART communication: 250 Ω

Certificates and Approvals
Patents: U.S. patents: 7,239,156; 7,245,132; 7,265,559; 7,282,928

Conformity Information
Degree of Protection: EN 60529



MS2100L CorrTran AQUA Ordering Information

Model
MS2100L - CorrTran AQUA Transmitter

Mounting Type
0 - No Display
5 - With Display

Certificates
0L - 4-Pin Electrical Connector (External)
1L - Cable Gland Entry (Internal 3-Pin Electrical Connector)
Your Part Number


Description:

Quantity:


Accessories
ET915549 CorrTran Com Tools
Quantity:
ET915548 HART modem, HART to USB interface
Quantity:
ET1804 HART Loop Converter. Converts HART signal to 3 separate 4 to 20 mA outputs.
Quantity:
