Model IP3000

Injection & Sampling System
Adjustable Length with NPT Pipe Plug



View data sheet (PDF)

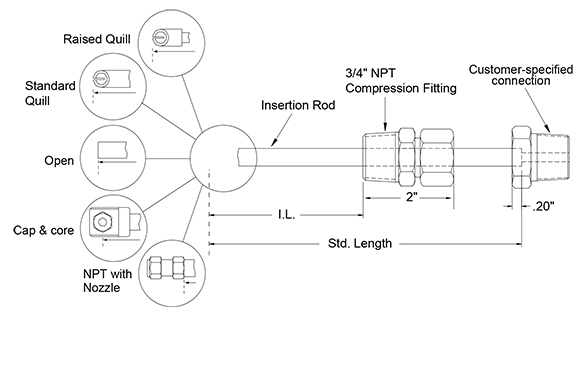

Model IP3000 is an adjustable, 3/4" NPT pipe plug injection & sampling system commonly used in field and plant applications. The adjustable pipe plug allows the injection/sampling system to be inserted into the process to the required length. Process shutdown or process isolation is required for installation and inspection. The unit assembly consists of an insertion rod, a welded pipe plug, and an injection/sampling tip. The injection tip, which is threaded, welded, or machined to the end of the rod, can be either a quill, open, cap & core, or nozzle assembly type. (Nozzles sold separately.) Insertion length (I.L.) is calculated to the end of the rod and is based on a customer specified length. For standard injection systems, the maximum insertion length is given in the chart below. The standard pipe plug for the IP3000 is the 3/4" NPT pipe plug, although other options are available.

Specifications:

Probe Body - 316 Stainless Steel
Temperature Rating - 850° F / 454° C
Pressure Rating - 3000 PSI / 204 Bar
Mounting - 3/4" NPT Pipe Plug

Std. Length I.L. (max)
6" 3.8"
8" 5.8"
12" 9.8"
18" 15.8"
24" 21.8"




IP3000 Ordering Information

Model
IP3 - Injection & Sampling System Adjustable Length with NPT Connection
  Pipe Plug Size
2 - 3/4" NPT Pipe Plug
3 - 1" NPT Pipe Plug
  Insertion Rod Material
2 - 316
4 - C276
  Mounting Material (Plug)
2 - 316
4 - C276
  Injection Tip Options
01 - Quill (Straight)
02 - Quill (Raised)
03 - Open
04 - 1/4" NPT (Female) with Nozzle*  (See Nozzle ordering options.)
06 - 1/4" NPT (Male) with Nozzle*  (See Nozzle ordering options.)
  Tube Size
01 - 3/8"
02 - 1/2"
03 - 5/8"
  Length

06 - 3.8 inches max insertion length
08 - 5.8 inches max insertion length
12 - 9.8 inches max insertion length
18 - 15.8 inches max insertion length
24 - 21.8 inches max insertion length

  Dry End Mount Options
01 - Blanked off
02 - 1/2" NPT
03 - 3/4" NPT
04 - 1" NPT
14 - 1/2" FNPT

Your Part Number


Description:

Quantity:


This list represents our most common options.  Many other sizes, alloys, and options are available.
Please contact your Metal Samples sales representative if you do not see what you're looking for.

* Nozzles must be ordered separately.
