Cylindrical Coupons

View PDF version

The list below represents our most common coupon options. Many other sizes, alloys, and options are available.

Please contact your Metal Samples sales representative if you do not see what you are looking for. For a list of alloys see Alloys and Alloys By Trademark.

P/N (Style)	Size (Diameter x Length)	Thread		Slot	Area Sq. In.
ES200	Ø 1/4" X 2.5"	1/4"-20 X 3/8"		1/16"	1.74
ES201	Ø 1/4" X 2.0"	1/4"-20 X 3/8"		1/16"	1.35
ES202	Ø 1/4" X 3.0"	1/4"-20 X 3/8"		1/16"	2.14
ES204	Ø 1/4" X 1.5"	1/4"-20 X 3/8"		1/16"	0.96
ES209*	Ø 1/4" X 3.0"	1/4"-20 X 3/8"		1/16"	2.505
	Alloy

		Finish (click here for descriptions of coupon finishes)

			Marking

				Weighed or Unweighed

					Your Part Number

Description:	Quantity:



This list represents our most common options. Many other sizes, alloys, and options are available. Please contact your Metal Samples sales representative if you do not see what you're looking for.

* ES209 has five 1/8" diameter scale holes.
** Lot # is assigned by Metal Samples and is associated with the heat number from the mill.

Also available:

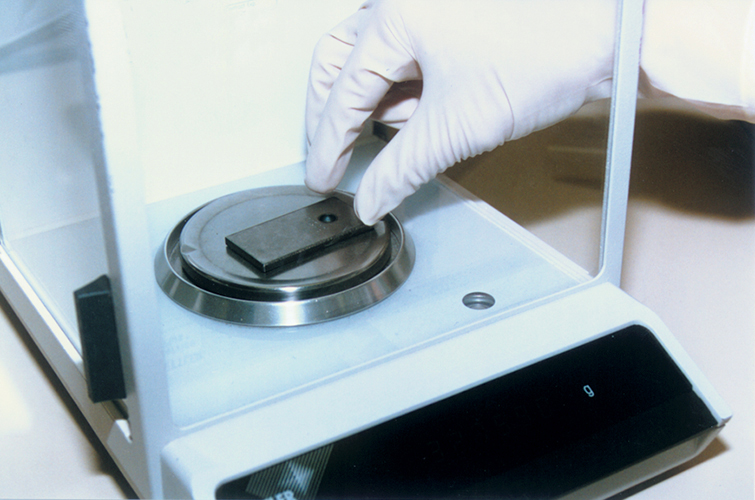

Post Exposure Coupon Analysis

Once coupons have been exposed in your system for the determined period of time, send them back to Metal Samples and let our technicians perform weight loss analysis to determine mils per year (MPY) corrosion rates.

More
