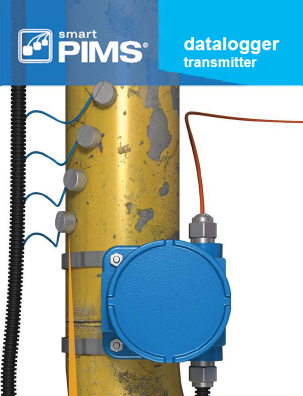

smartPIMS® Datalogger

View PDF version

non-intrusive ultrasonic sensors for corrosion/erosion monitoring

Metal Samples along with Sensor Networks Inc., offers the smartPIMS® Datalogger non-intrusive ultrasonic corrosion/erosion monitoring system which is equipped with an onboard battery and memory that can
store up to 3,000 thickness readings.

It takes measurements at any user-defined time interval, storing them for manual offload to a tablet or PC via an RS-485 cable. The smartPIMS® Datalogger is used for applications where frequent measurements are required, but wireless infrastructure is not available or not permitted.

monitor corrosion rate
resolution to 0.001” (0.025mm) • high-risk areas • historically problematic locations


monitor “low spots”
post-NDE screening of pits to monitor re-maining thickness • measures down to 0.040” (1.02mm)


replace/augment intrusive methods
validation of coupons, ER probes, etc.


reduce costs
reduce scaffolding and insulation removal/refitting for internal corrosion monitoring • more accurate/reliable data improving operations


  • Operates on battery (2 years at 1 reading/day).
  • Stores 3000 readings (each w/ time, date, waveform).
  • Connects via Modbus (RS-485) to tablet/PC.
  • Offloads data to dataPIMS software which can export to an XML/CSV file and/or upload to web PIMS via Internet connection.
  • Offers 16 single- or 8 dual-element UT probe channels.
  • Transducers maintain 1 mil (0.001” / 0.025mm) resolution and 0.040” (1mm) minimum wall thickness.
  • Transducers withstand -22°F (-30°C ) to 932°F (500°C).
  • Sensors install buried or above-ground, temporarily or permanently.
  • ATEX, IECEx, UL/CSA and Japanese hazardous-area certifications.



Technical Specifications

Digital Sensor Interface

Transmitter
Model: smartPIMS® datalogger
Protocol/Communication: Modbus / RS-485, 2-wire, max. 1000’ (305m)
Battery Type: Li D-cell, 3.6 VDC, qty. 2
Battery Life: 2 years (typical, based on 1 reading/day)
Storage Capacity: 3000 readings (FIFO)
UT System: Channels:
Pulser Voltage:
Analog Frequency:
Gain:
Digitizer Frequency:
Certification:
16 ultrasonic, 1 temperature
±5V bipolar square
1-10 MHz (-3dB)
-10dB to +70dB
40 Msps
Class I, Div. 2, Groups A-D, T4, Class 1, Zone 2, IIC, T4
II 3G, Ex ec IIC T4 Gc, Tamb -20°C to +60°C
Enclosure: Type: Instrumentation housing
  Material/rating: Cast aluminum / NEMA 4X, IP66
  Temperature Range: -4°F to + 140°F (-20°C to +60°C)
  Dimensions: 5.44 × 5.63 × 5.13” (138 × 143 × 130mm)
  Weight: 5.2 lb (2.36 kg)

Tablet Datalogger
Performance: Processor:

Memory / Storage: Operating System:
Intel i5-4200U 1.6GHz w/ 3MB L3 cache (dual-core) (min.)
8 GB RAM / M2-SATA SSD, 64 GB (min.) Windows 10
Connections: Network power, data via RS-485-to-USB adapter
Physical: Environmental ratings:
Dimensions:
Weight:
P65, MIL-STD-810G, 14 to 131°F (-10 to +55 °C) *
11.4” × 7.48” × 0.78” *
2.73 lbs. *
* due to model changes, actual size/weight may change

Transducers

Transducer Cable:
Type: Coaxial, ¼” dia.
Maximum Length to Transducer: Standard 10’ (3.0m) and 25’ (7.6m), custom to 50’ (15.2m)

Transducers:
Model:
Application:
Frequency:
Active Area (dia.):
Overall (dia. x h):
# of transducers:
Resolution:
Thickness range**:
Temp. range:
Attachment:
Dual-Element Contact
XD-301
Severe pitting
5 MHz
0.375” (10mm)
0.75” x 0.75” (19 x 19mm)
1-8
0.001” (0.025mm)
0.040 - 6.0” (1.0 - 150.0mm)
-22 to +275°F (-30 to + 135°C) magnet / adhesive
Delay-Line Contact
XD-201
Ultra-High-Temp
7 MHz
0.375” (10mm)
0.8” x 2.25” (20.3 x 57.2mm)
1-16
0.001” (0.025mm)
0.125 - 1.0” (3.0 - 25.0mm)
-22 to +932°F (-30 to 500°C) mechanical clamp / coupling foil

** minimum resolutions stated as typical values, but will vary with pipe condition
