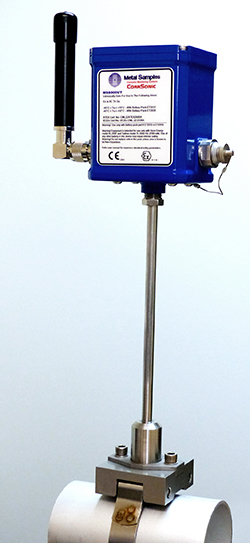

Metal Samples’ CorrSonic is a non-intrusive ultrasonic corrosion/erosion monitoring instrument that uses WirelessHART protocol to communicate to SCADA or DCS systems.
The CorrSonic has three wireless transducer options: Thru-Coating, High Sensitivity Dual, or Ultra-High Temp Single.
The Thru-Coating option eliminates the need for coating removal.
The High-Sensitivity Dual option offers precise thickness measurements.
The Ultra-High Temp option has specialized coupling technology to monitor processes up to 932°F (500°C).
The instrument is available in stainless steel, copper-free aluminum, and PC enclosure variants suitable for different harsh environment requirements.
Technical Specifications
| Model |
|
| MS8000UT-HRT |
| |
|
| Data |
|
| Instrument Weight: |
3.5 lbs. (1.7 Kg) |
| Instrument Dimensions: |
16.55” x 3.46” x 5.0”
(420.4mm x 87.88mm x 127mm) |
| Output Signal: |
WirelessHART |
| Data Access: |
SCADA or DCS |
| |
|
| Battery Life: |
5 years at 2 readings per day |
| Mounting: |
Band clamp, magnetic base, welded studs |
| Measurement Frequency: |
12 hours (default) or user configurable to every hour |
|
|
