MH™ Access Fitting Bodies

 View PDF version

Non-Tee Types

Model Height (in) Weight (lbs) Total Height (in)
MH1000 Flareweld 5.50 7 5.50
MH3000 Socket Weld 5.25 6 6.50*
MH4000 NPT 5.14 6 6.50**

* Overall height of access fitting when attached to a class 6000# Sockolet® 1
** Overall height of access fitting when attached to a class 6000# Threadolet® 1

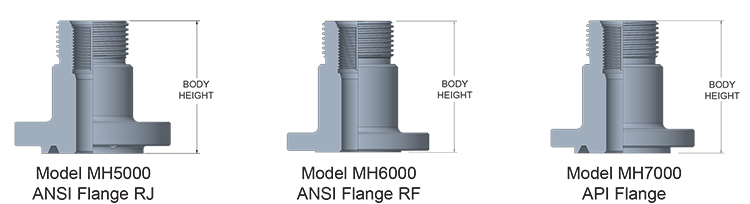

2" ANSI Flange Rating Height
(in)		 Weight
(lbs)		   2-1/16" API Flange Rating Height
(in)		 Weight
(lbs)
150# 5.50 11 2000# 5.50 14
300# 5.50 13 2/5000# 5.50 27
4/600# 5.50 14 10000# 6.50 42
9/1500# 5.50 27
2500# 6.50 42

Temperature Rating: -20° F (-28.9° C) to +350° F (176.6° C)
Pressure Rating: 6000 PSI or as Flange Size

1 Sockolet® and Threadolet® are registered trademarks of Bonney Forge Corporation.





Tee Types

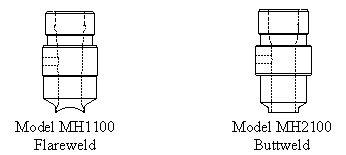

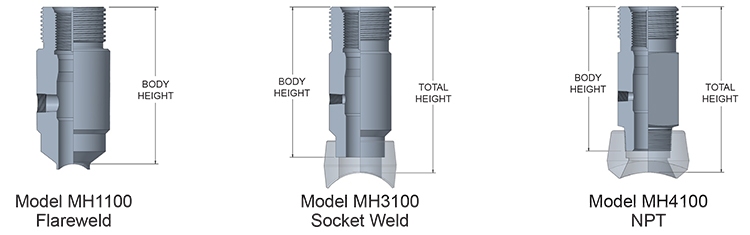

Model 1/4" T 1/2" T 3/4" T 1" T
Body
Height
(in) 		Weight
(lbs)		 Total
Height
(in) 		Body
Height
(in) 		Weight
(lbs)		 Total
Height
(in) 		Body
Height
(in) 		Weight
(lbs)		 Total
Height
(in) 		Body
Height
(in) 		Weight
(lbs)		 Total
Height
(in)
MH1100 7.50 11 7.50 7.50 11 7.50 7.50 11 7.50 7.50 11 7.50
MH3100
 7.25 10 8.50* 7.25 10 8.50* 7.25 10 8.50* 7.25 10 8.50*
MH4100 7.14 10 8.50** 7.14 10 8.50** 7.14 10 8.50** 7.14 10 8.50**

* Overall height of access fitting when attached to a class 6000# Sockolet® 1
** Overall height of access fitting when attached to a class 6000# Threadolet® 1

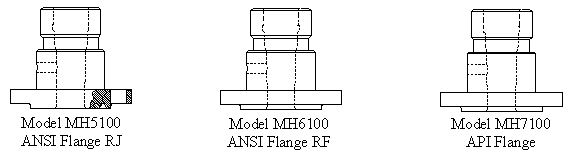

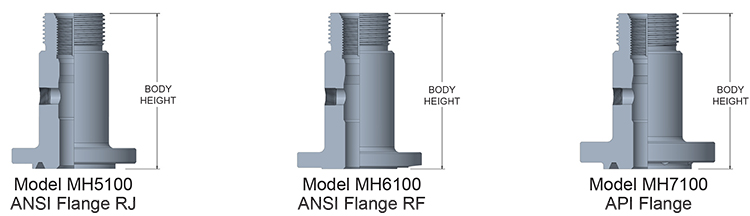

Model 		2"
Flange Size		 1/4" T 1/2" T 3/4" T 1" T
Height
(in)		 Weight
(lbs)		 Height
(in)		 Weight
(lbs)		 Height
(in)		 Weight
(lbs)		 Height
(in)		 Weight
(lbs)
MH5100
ANSI
Flange RJ		 150# 7.50 15 7.50 15 7.50 15 7.50 15
300# 7.50 17 7.50 17 7.50 17 7.50 17
4/600# 7.50 18 7.50 18 7.50 18 7.50 18
9/1500# 7.50 31 7.50 31 7.50 31 7.50 31
2500# 8.50 46 8.50 46 8.50 46 8.50 46



MH6100
ANSI
Flange RF		 150# 7.50 15 7.50 15 7.50 15 7.50 15
300# 7.50 17 7.50 17 7.50 17 7.50 17
4/600# 7.50 18 7.50 18 7.50 18 7.50 18
9/1500# 7.50 31 7.50 31 7.50 31 7.50 31
2500# 8.50 46 8.50 46 8.50 46 8.50 46

MH7100
API Flange		 2000# 7.50 18 7.50 18 7.50 18 7.50 18.00
3/5000# 7.50 31 7.50 31 7.50 31 7.50 38.00
10000# 8.50 46 8.50 46 8.50 46 8.50 45.50


Temperature Rating: -20° F (-28.9° C) to +350° F (176.6° C)
Pressure Rating: 6000 PSI or as Flange Size

Ordering Information
Mounting Type
MH1 - Flare weld
MH2 - Butt weld
MH3 - Socket weld
MH4 - NPT threaded
MH5 - Flanged - 2 Inch ANSI Ring Joint (RJ)
MH6 - Flanged - 2 Inch ANSI Raised Face (RF)
MH7 - Flanged - 2 Inch API Ring Joint (RJ)
  Tee Size
  Radius or Flange Class
  Fitting Alloy

Options
0000 - None
Your Part Number


Description:
 Quantity:


This list represents our most common options. Many other sizes, alloys, and options are available.
Please contact your Metal Samples sales representative if you do not see what you're looking for.


Metal Samples Company
P.O. Box 8
152 Metal Samples Rd.
Munford, AL 36268
Phone: (256) 358-4202
Fax: (256) 358-4515

E-mail: msc@alspi.com

Follow us on: Facebook | LinkedIn

Metal Samples Company is a division of Alabama Specialty Products, Inc. - Copyright © 2023
