HP™Access Fitting Bodies



View PDF version

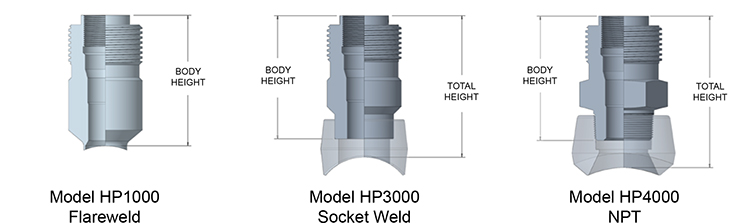

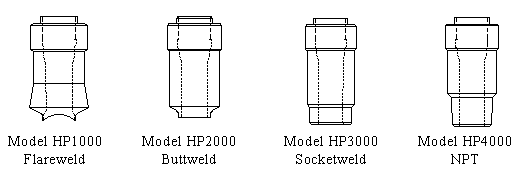

Non-Tee Types


Model Height (in) Weight (lbs) Total Height (in)
HP1000 Flareweld 5.25 6.50 5.25
HP3000 Socket Weld 5.00 5.60 6.25*
HP4000 NPT 4.89 5.50 6.25**

* Overall height of access fitting when attached to a class 6000# Sockolet® 1
** Overall height of access fitting when attached to a class 6000# Threadolet® 1

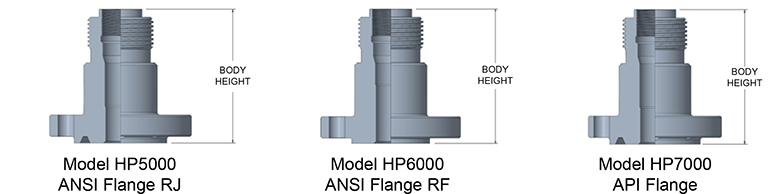

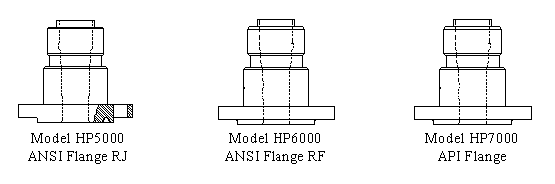

2" ANSI Flange Rating Height
(in)
Weight
(lbs)
  2-1/16" API Flange Rating Height
(in)
Weight
(lbs)
150# 5.25 10.50 2000# 6.25 15.75
300# 5.25 11.50 2/5000# 6.25 31.00
4/600# 6.25 15.25 10000# 6.25 40.50
9/1500# 6.25 30.75
2500# 6.25 40.00

Temperature Rating: -20° F (-28.9° C) to +350° F (176.6° C)
Pressure Rating: 6000 PSI or as Flange Size

Note: Access fittings with internal ACME threads (HPAT series) are also available.
These are beneficial for bottom-of-line locations where solids or debris may be present.

1 Sockolet® and Threadolet® are registered trademarks of Bonney Forge Corporation.

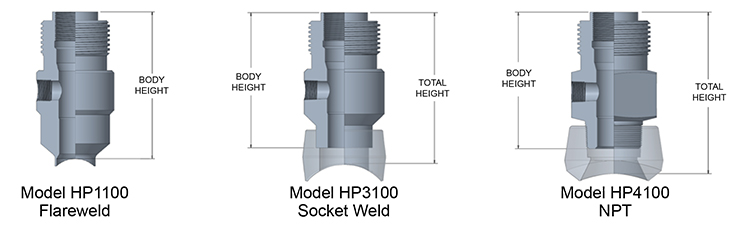

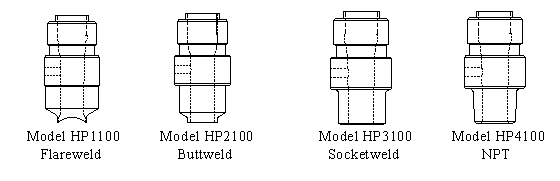

Tee Types

Model 1/4" T 1/2" T 3/4" T 1" T
Body
Height
(in)
Weight
(lbs)
Total
Height
(in)
Body
Height
(in)
Weight
(lbs)
Total
Height
(in)
Body
Height
(in)
Weight
(lbs)
Total
Height
(in)
Body
Height
(in)
Weight
(lbs)
Total
Height
(in)
HP1100 5.25 6.30 5.25 6.25 8.70 6.25 6.25 8.70 6.5 7.25 11.10 7.25
HP3100
5.00 5.70 6.25* 6.00 8.10 7.25* 6.00 8.10 7.25* 7.00 11.00 8.25*
HP4100 4.89 5.40 6.25** 5.89 8.60 7.25** 5.89 8.60 7.25** 6.89 11.10 8.25**

* Overall height of access fitting when attached to a class 6000# Sockolet® 1
** Overall height of access fitting when attached to a class 6000# Threadolet® 1





Model
2"
Flange Size
1/4" T 1/2" T 3/4" T 1" T
Height
(in)
Weight
(lbs)
Height
(in)
Weight
(lbs)
Height
(in)
Weight
(lbs)
Height
(in)
Weight
(lbs)

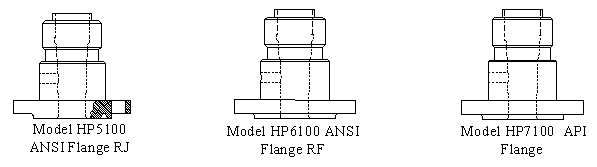

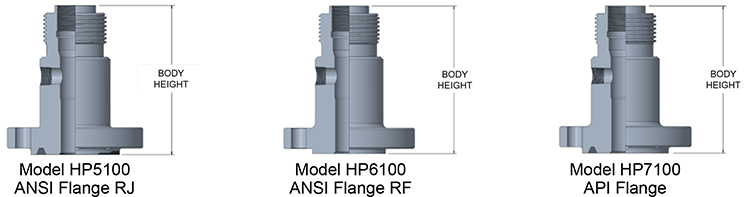

HP5100
ANSI
Flange RJ
150# 5.25 9.50 7.25 10.00 7.25 10.00 7.25 10.5
300# 5.25 11.50 7.25 11.75 7.25 12.00 7.25 12
4/600# 6.25 12.75 7.25 13.00 7.25 13.00 7.25 13
9/1500# 6.25 25.75 8.25 26.00 8.25 26.25 8.25 26.50
2500# 6.25 40.20 8.25 40.50 8.25 40.40 8.25 40.75



HP6100
ANSI
Flange RF
150# 5.25 9.75 7.25 10.00 7.25 13.00 7.25 13.00
300# 5.25 11.50 7.25 11.75 7.25 17.00 7.25 17.00
4/600# 6.25 12.75 7.25 13.00 7.25 18.00 7.25 18.00
9/1500# 6.25 25.75 8.25 26.00 8.25 38.00 8.25 38.00
2500# 6.25 40.10 8.25 40.50 8.25 45.50 8.25 45.50

HP7100
API Flange
2000# 6.25 15.75 7.25 18.00 7.25 18.00 7.25 18.00
3/5000# 6.25 31.00 8.25 38.00 8.25 38.00 8.25 38.00
10000# 6.25 40.50 8.25 45.50 8.25 45.50 8.25 45.50

Temperature Rating: -20° F (-28.9° C) to +350° F (176.6° C)
Pressure Rating: 6000 PSI or as Flange Size





Ordering Information

Mounting Type
HP1 - Flareweld
HP3 - Socket weld
HP4 - NPT threaded
HP5 - Flanged - 2 Inch ANSI Ring Joint (RJ)
HP6 - Flanged - 2 Inch ANSI Raised Face (RF)
HP7 - Flanged - 2 Inch API Ring Joint (RJ)
  Tee Size
  Radius or Flange Class
  Fitting Alloy

Options
0000 - None
Your Part Number


Description:

Quantity:


This list represents our most common options. Many other sizes, alloys, and options are available.
Please contact your Metal Samples sales representative if you do not see what you're looking for.
