Model LP6100

Linear Polarization Resistance Probe
Fixed Length with Flange & 3-Electrode Endcap



View data sheet (PDF)

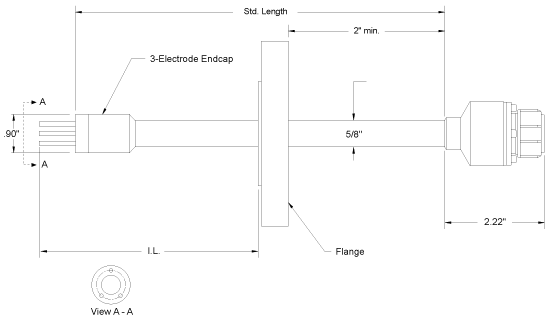

Model LP6100 is a fixed-length, flange-mounted, linear polarization resistance probe. The probe is ideally suited for use in high pressure and/or hazardous applications where threaded fittings are not available or not recommended. Process shutdown or process isolation is required for installation and inspection. The probe assembly consists of an insertion rod with a three-electrode endcap, a hermetically sealed connector, and a flange (as specified by customer), which are all welded in place. Insertion length (I.L.) is calculated to the end of the electrodes and, in this case, is based on a 1" total flange thickness. Customers can specify any length required. For standard probes, the maximum insertion length is given in the chart below. Several standard electrodes are available to meet your specific needs. Electrodes are ordered separately.

Specifications:

Probe Body - 316 Stainless Steel
Endcap Seal - Glass
Fill Material - Epoxy
Temperature Rating - 500° F / 260° C
Pressure Rating - According to Flange Rating
Mounting - Mating Flange

Std. Length I.L. (Max)
12" 10.25"
18" 16.25"
24" 22.25"


LP6100 Ordering Information

Model
LP6 - Linear Polarization Fixed Length Probe with Flange
  Flange Size
1 - 1" Flange
2 - 1 1/2" Flange
3 - 2" Flange
4 - 3" Flange
5 - 4" Flange
7 - 6" Flange
8 - 2 1/2" Flange
  Probe Body Material
22 - 316
  LP Electrode Options
3 - Three-electrode integral type
  Flange Pressure Rating
1 - 150 lbs.
2 - 300 lbs.
3 - 600 lbs.
4 - 1200 lbs.
5 - 1500 lbs.
6 - 900 lbs.
  Seal Type
1 - Glass
  Length
12 - 10.25 inches max. insertion length
18 - 16.25 inches max. insertion length
24 - 22.25 inches max. insertion length
  Options
000 - None
  Insertion Length (I.L.)
Enter length in inches, stated in 2 decimal place format. Round calculated length down to the nearest 1/8".
(Example: 5 1/8" = 0512)
Your Part Number


Description:

Quantity:


This list represents our most common options.  Many other sizes, alloys, and options are available.
Please contact your Metal Samples sales representative if you do not see what you're looking for.
(Note: Not all alloys are available with all element types and seals.)

Electrodes are replaceable and are sold separately (below.)



EL412 Style Electrodes


Common Electrodes
Alloy UNS Number Part#
C1018 Carbon Steel G10180 EL4123772800000
Quantity:
304L Stainless Steel G30403 EL4121452800000
Quantity:
316L Stainless Steel S31603 EL4121592800000
Quantity:
CDA110 Copper C11000 EL4124192800000
Quantity:
CDA443 Admiralty Brass C44300 EL4124342800000
Quantity:
AL1100 Aluminum A91100 EL4122902800000
Quantity:
AL6061 Aluminum A96061 EL4123382800000
Quantity:
AL7075 Aluminum A97075 EL4122272800000
Quantity:
Other - Please specify in comments N/A EL412XXX2800000
