ASTM D2570 Engine Coolant Test Bundle

View PDF version

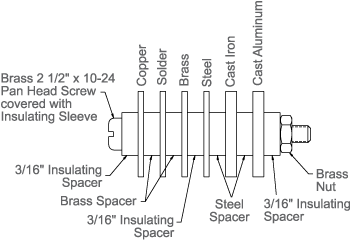

Simulated service corrosion test bundle for testing engine coolants

P/N TF4006

Ordering Information - Engine Coolant Testing Parts

Part #	Description
TF4006	ASTM D2570 Test Bundle	Quantity:
TF4000C	Insulating Sleeve (TFE)	Quantity:
TF4000D	Steel Spacer	Quantity:
CO1463780504100	Steel Coupon (C1020)	Quantity:
TF4000E	Brass Spacer	Quantity:
CO1464190504100	Copper Coupon (CDA110)	Quantity:
TF4000F	3/16" Insulating Spacer (TFE)	Quantity:
CO1464270504100	Brass Coupon (CDA260)	Quantity:
CO1464273504100*	Solder Coupon (30/70)	Quantity:
09369E1024HN0000	10-24 Brass Nut	Quantity:
CO3373130504100	Cast Aluminum Coupon (AL319)	Quantity:
CO337B930504100	Cast Iron Coupon (CL3500)	Quantity:
09369E1024PH2500	2 1/2" x 10-24 Brass Pan Head Screw	Quantity:

* Solder Coupon (30/70) is solder coated brass. Please specify if you require pure solder.

Note: Metal Samples manufactures test apparatus in accordance with ASTM standards. Metal Samples does not conduct test procedures and therefore does not attempt to address testing considerations. Please consult ASTM standards for safety guidelines and additional information regarding testing procedures.
