MS2701E High Resolution ER Transmitter

RS-485 Modbus Output

View PDF version
User's Manual in PDF
Instrinsic Safety Certifications

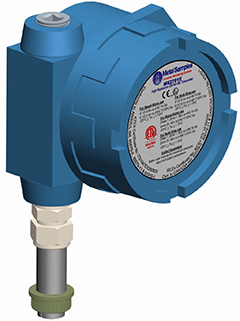

Metal Samples’ new compact MS2701E ER Transmitter measures all types of electrical resistance (ER) corrosion probes. The new high-resolution, 16-bit measurement provides faster response, obtaining corrosion rates in hours instead of days.

The transmitter is provided in a weather-proof (IP 66 / NEMA-4X) and explosion proof cast aluminum enclosure. It is designed to be mounted directly to the probe, but can also be mounted nearby using the optional mounting kit and a customer-supplied mounting pole.

The MS2701E transmitter offers simple installation and robust RS-485 Modbus communication, allowing up to 32 units to be connected in series (daisy-chained) on a single line. Setup is also simple, using a set of switches to select the probe type to be measured, address, and other options.




Technical Specifications

Model
MS2701E - High Resolution ER RS-485 Modbus Transmitter, Direct Mount
MS2701E-XX* - High Resolution ER RS-485 Modbus Transmitter, Remote Mount
XX* = Cable length in feet, up to 30 feet maximum, in 5 foot increments.

Physical Data
Instrument Weight: 3.70 lb. (1.68 Kg)
Total Weight w/ Accessories: 5.76 lb. (2.61 Kg)
Instrument Dimensions: 8.0" H x 4.82" W x 3.45" D
(20.32cm H x 12.24cm W x 8.76cm D)


Operating Temperature: -40° to 158°F (-40° to 70°C)
Storage Temperature: -40° to 176°F (-40° to 80°C)

Enclosure Material: Cast Aluminum (Copper-Free)
Mounting Specifications: Direct probe mount or Remote mount
(Up to a 2.5" (6.35 cm) Dia. pole)


Performance Data
Measurement Type: ER measurement using any standard ER probe type
(Wire Loop, Tube Loop, Cylindrical, Flush, Strip, etc.)
Range: 0-100% of probe life
Resolution: 0.0015% of Probe Life (16-bit)
Cycle Time: 90 Seconds

Electrical Data
Power Requirements: 10 to 28 VDC
Maximum Probe Cable Distance: 30 ft (9.1 m)
Output Specifications: RS-485 Modbus, RTU or ASCII Protocol (Switch Selectable)
2400 / 4800 / 9600 / 19.2K Selectable Baud
32 Maximum Units (Addresses 1 to 32)

Hazardous Location Certifications - Intrinsic Safety

Europe and Worldwide
(ATEX and IECEx)
II 2(1) G Ex db [ia Ga] IIC T6…T4 Gb
II 2(1) D Ex  tb [ia Da] IIIC T80°C Db
- 40°C ≤ Ta ≤ + 70°C



ATEX Certificate No: ITS18ATEX2203437X
IECEx Certificate No: IECEx ETL 18.0020X


X - see Special Conditions in Operator's Manual.

Hazardous Location Certifications - Enclosure
Case Specifications: Explosion Proof (FM, CSA, CENELEC, UL)
  IP 66, NEMA 4X, 7BCD, 9EFG

Included Accessories (Direct-Mount Model)
Meter Prover, Operations Manual

Included Accessories (Remote-Mount Model)
Meter Prover, Operations Manual, Probe Cable, Mounting Hardware Kit





MS2701E Ordering Information

Model
MS2701E - High Resolution ER RS-485 Modbus Transmitter, Direct Mount
MS2701E-XX* - High Resolution ER RS-485 Modbus Transmitter, Remote Mount (specify cable length below)
  XX* = Cable length in feet, up to 30 feet maximum, in 5 foot increments.
