Model LP3300 is an adjustable-length, linear polarization resistance probe which is specifically

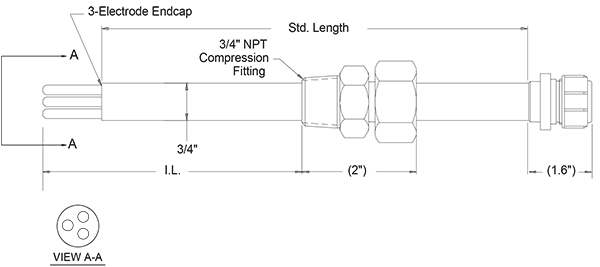

designed for use with CorrTran style instruments. The assembly consists of a 3/4" NPT compression fitting, an insertion rod with a hermetically sealed three-electrode endcap, and a six-pin connector welded in place. The probe’s insertion length is adjustable and can be set on-site during installation. The table below lists the available standard lengths and the maximum insertion length of each. Electrodes are available in a wide variety of alloys and are sold separately (see
Optional Accessories).
Specifications: Probe Body - 316 Stainless Steel
Endcap Seal - Glass
Fill Material - Epoxy
Temperature Rating - 500° F / 260° C
Pressure Rating - 1500 PSI / 102 Bar
Mounting - 3/4" NPT Pipe Plug |
| Std. Length |
I.L. (Max) |
| 6" |
5.25" |
| 8" |
7.25" |
| 12" |
11.25" |
| 18" |
17.25" |
|
|
