Model HY7001

Hydrogen Probe
High Pressure - Direct Mount

View PDF version
Model HY7001 is a high pressure hydrogen probe configuration which can be used for pressures up to 3600 psi. Hydrogen probes are commonly used for monitoring hydrogen permeation in steels, which could lead to embrittlement, blistering, and decarburization resulting in the failure of the material.

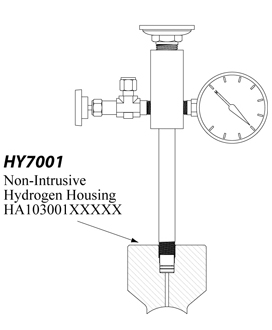

The HY7001 housing can be machined to fit the flat surfaces of tanks or radiused to fit pipe diameters. The HY7001 consists of two subassemblies: the gauge assembly and the non-intrusive housing that can be welded directly to the exterior of the pipe wall or vessel.

Specifications:

Probe Body - 316 Stainless Steel
Temperature Rating - 500° F / 260° C
Pressure Rating - 3600 PSI / 245 Bar
Mounting - Direct Mount




HY7001 Ordering Information

Model
HA103001 - Non-Intrusive Hydrogen Housing
  Alloy
158 - 316
  Pipeline Size
1 - 2"
2 - 3"
3 - 4"
4 - 6"
5 - 8-10"
6 - 12-16"
7 - 20-26"
8 - Flat
  Gauge Block / Rod Assembly
0 - Not included
1 - Included
Your Part Number


Description:

Quantity:



Gauge Assembly Parts
Part # Description
PS5509 Gauge Assembly (complete) - contains all parts listed below
Quantity:
PR6441158 Pressure Gauge
Quantity:
PR6032 Temperature Gauge
Quantity:
PR6034 Bleed Valve
Quantity:
PS5603158 Gauge Block/Rod Assembly
Quantity:
