Model ER3110

ER Corrosion Probe | Non-Metallic Body | Cylindrical Element

View data sheet (PDF)

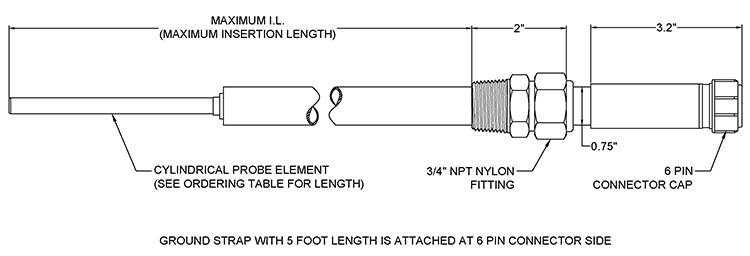

Model ER3110 is an adjustable-length, electrical resistance (ER) probe used to monitor metal loss and corrosion rate under above-ground storage tanks. The non-metallic body eliminates the possibility of galvanic interaction that can occur with metallic insertion rods, and the optional ground lead allows the sensing element to be electrically coupled to the tank or CP rectifier.

Key Features:
Robust – Cylindrical element is ideally suited for monitoring corrosion under storage tanks.
Versatile – Can be used to monitor the native corrosion rate or the corrosion rate under cathodic protection.

Probe Body	Glass Epoxy	Temperature Rating (w/ Nylon compression fitting)	150° F / 65° C
Element Seal	Epoxy	Pressure Rating	100 PSI / 7 Bar
Fill Material	Epoxy	Mounting	3/4" NPT Pipe Plug

ER3110 Ordering Information

Model
ER3 - Electrical Resistance Adjustable Length Pipe Plug Probe
	Pipe Plug Size
	2 - 3/4" NPT Pipe Plug
		Probe Body Material
		7E - Epoxy
			ER Element Options
			503 - CT10 Cylindrical - Element length 4”, 10 mil thickness (5 mil useful probe life) 603 - CT20 Cylindrical - Element length 4”, 20 mil thickness (10 mil useful probe life) 703 - CT50 Cylindrical - Element length 10”,50 mil thickness (25 mil useful probe life)

				Maximum Insertion Length (I.L.)
				11 - 9.5” max. I.L. for 4” element / 15.5” max. I.L. for 10” element probe 32 - 30.5” max. I.L. for 4” element / 36.5” max. I.L. for 10” element probe 50 - 48.5” max. I.L. for 4” element / 54.5” max. I.L. for 10” element probe
					Element Alloy
					375 - C1010 Carbon Steel (UNS G10100) – CT10 and CT20 only 378 - C1020 Carbon Steel (UNS G10200) – CT50 Only
						ER Probe Options
						14 - Ground Lead
							Your Part Number

Description:	Quantity:



This list represents our most common options. Many other sizes, alloys, and options are available. Please contact your Metal Samples sales representative if you do not see what you're looking for. (Note: Not all alloys are available with all element types and seals.) * Chemically equivalent to standard pipe-grade carbon steels.
