Laser Tube Cutting ServicesLaser tube cutting services from Alabama Laser are performed with three CO2 laser systems designed for cutting round, square, rectangular, flat, oval, and virtually any other type of tubes.

Our laser tube cutting systems enable us to cut slots and holes in round tubing with diameters up to 8 5/8" (minimum O.D. of 1/2") and square tubing with side dimensions up to 8". Maximum tube wall thickness = 5/8" on carbon steel and 1/4" on stainless & aluminum.

These laser tube cutting systems allow storage of tube bundles and can automatically load and position tubes with lengths between 10.5' and 24.5' without operator intervention. Shorter and longer tube lengths can be loaded manually (up to 27.5').

Benefits of Laser Tube Cutting:

  • No tooling expenses
  • Minimal burrs or chips on cuts
  • Coolant-free (no cutting fluid residue left on parts)
  • Accurate tolerances (repeatability)
  • Multiple operations can be consolidated into one cycle
  • Small to large production runs
  • Conserve material by nesting several parts into the length of one tube
  • Ability to be run unattended

Laser Tube Cutting Services
Laser cut tube - 9 ft. long / 3,000 holes
Laser Tube Cutting ServicesSquare Tube Cutting Laser Tube Cutting ServicesRound Tube Cutting Laser Tube Cutting ServicesRectangular Tube Cutting Laser Tube Cutting ServicesSpecial Shape Tube Cutting

Tilting Axis for Beveled Cuts
Laser Tube Cutting Services
Our latest laser tube cutting system has a tilting axis which allows for angled cuts. In the past, if chamfered holes were required on tube parts, a secondary machine shop operation would be required. Now the bevel can be made with the laser tube cutter.

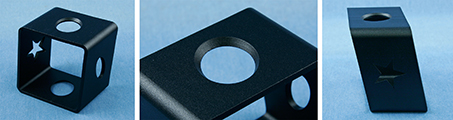

Chamfered Hole Cutting Capabilities of Laser Tube Cutting System
Laser Tube Cutting Services

Coping Capabilities of Laser Tube Cutting System
Laser Tube Cutting ServicesLaser Tube Cutting Services           Laser Tube Cutting ServicesLaser Tube Cutting Services

Tab & Slotting Capabilities of Laser Tube Cutting System
Laser Tube Cutting Services Laser Tube Cutting Services Laser Tube Cutting Services Laser Tube Cutting Services

Laser Tube Cutting Services
Brackets laser cut from tubing
Laser Tube Cutting Services
Previously cut on CNC swiss
screw machine in 10 min.
Laser tube cut in 56 sec.
Laser Tube Cutting Services
With conventional machining - multiple processes.
With the laser tube cutter -
only 1 cycle is needed.

Four photos at the top of this page courtesy BLM-Adige USA.
