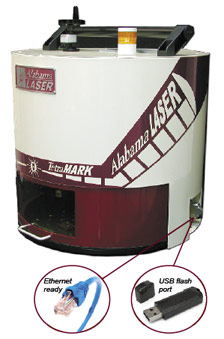

Alabama Laser’s TetraMARK laser marking system is a compact, tabletop system.

The TetraMARK is capable of laser marking different font letters, numbers, graphics, barcodes, 2-D matrix, and logos on a variety of materials such as:


  • carbon steel
  • stainless steel
  • aluminum
  • copper
  • mirror-finished stainless
  • wood
  • plastics


Files for laser marking can be downloaded and run from a
network PC or a USB flash drive.

Specifications of TetraMARK Laser Marking System


Laser types Fiber laser, CO2 laser
Focal length 163 mm
Max. part size /
marking field		 120mm x 120 mm
Marking speed
(characters / sec)		 500
Input power 110V / 1 / 60 Hz
Z-axis stroke 8"
Dimensions Diameter - 22.5", Height 20"
Base unit weight < 100 lbs.

Laser Marking Systems Laser Marking Systems


Laser Marking Systems


Laser Marking Systems

Laser Marking Systems

Features:
• Table top unit
• Multi-program selection
• Interior work lights
• Adjustable Z-axis with digit readout
• Light weight, compact and portable
• CDRH safe enclosure
• UID - 2D Matrix compliant
• Fume extraction outlet
Optional Features:
• CCD camera
• Automated Z-axis and rotary stage
• Custom part handling and fixturing
• Laptop stand

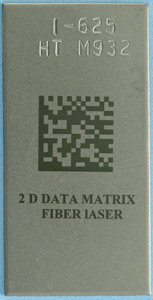

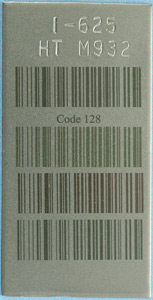

Image laser marked on anodized steel		 Laser Marking Systems

Laser Marking Systems    Laser Marking Systems Laser Marking Systems
Pen personalized with laser marking system

Laser Marking Systems
Laser Marking Systems Laser Marking Systems

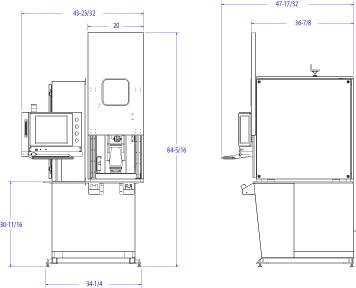

Front view of laser marking system Top view of laser marking system



ALSmark Model F10R
Laser Marking Systems

Laser Marking Systems  Laser Marking Systems
► View Laser Marking Systems Videos
Laser Marking Systems The ALSmark Model F10R is a stand alone laser marking system. The system includes a Class 1 safety enclosure with a sliding door and consists of the following components:

   •  10W Fiber Laser
   •  Scan head
   •  ALSmark marking software

These components have been integrated to provide a compact, fast, safe, low-power consuming laser marking system with a maintenance free laser. The system requires no water cooling and can be operated from a 110V/230V wall plug.

Laser Marking Systems Laser Marking Systems
ALSmark Laser Marker Specifications

  Standard Option
Marking Head
Head 2 axis scan
Field Size 120mm x 120mm 70mm x 70mm, 180mm x 180 mm
Focus 163mm 100mm, 160mm, 254mm
Beam Aperture 8 - 10mm

Power 110V single phase 230V single phase

Laser
Laser Q switch fiber
Fiber Length 5m
Average Power 10W 20W
Wavelength 1064nm
Pulse Rate 20-80kHz
Red Guide Laser 0.3 ~ 4.5mW
Polarization Random
Beam Diameter 6 ~ 9mm
Cooling Air
Beam Mode M2 1.4 ~ 1.8

Motion System:
Y axis 19 inches
Manual Z axis 15 inches motorized Z axis

Machine
Length 48 inches
Width 44 inches
Height 85 inches


Note: These specifications are subject to change. Final system specifications to be agreed upon.


Laser Marking Systems                  Laser Marking Systems

Fiber Laser:
Q-switched Pulsed Laser with a 1.07 micro meter wavelength
80 to 500 ns pulse duration
20 to 200kHz repletion rate
Single mode fiber delivered with a rugged flexible metal sheath protection
No water cooling
Compact rugged air-cooled package
No replacement parts
No after installation service required
No maintenance required
Pumping diode reliability greater than 100,000 hours
Collomated output beam
Guide laser/Red trace laser is incorporated in the laser at no extra cost


Axis Scan Head
10 mm Beam aperture (If speed is factor, it can be changed to a smaller aperture.)
Rugged IP-65 package
Sealed head
XY2-100 Digital Interface
Writing speed greater than 700 characters per second (1000 Characters for 7mm aperture)


ALSmark marking software
USB 1.1 or 2.0 interface
10 micro second update rate
Windows 98/2000/XP software
Intuitive easy to learn Graphical Interface
Alignment tools for placing text in marking zone
Add barcode 2 of 5, 39, 128, 93, data matrix etc.
Fill or hatch elements to create Solid fill
Serialization and text merge
Radial and vertical text
Import vector and graphic file types
Paste art from clipboards
Scale, Rotate and Mirror
External control capable
Built-in lens correction

Automated Laser Marking Systems

► View Laser Marking Systems Videos
Laser Marking Systems Alabama Laser's automated laser marking systems scans a part as it enters the marking area, sends the part identification information to the main frame and then laser marks the appropriate serial number/bar code onto the part.
