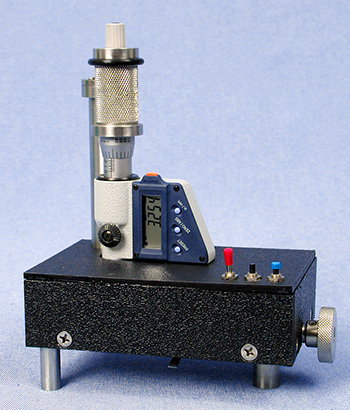

Tissue Slice Thickness Gauge
|
|
The Tissue Slice Thickness Gauge is used in conjunction with the Alabama R&D Tissue Slicer to rapidly measure the thickness of slices being prepared.
The gauge operates by measuring the decrease in height of a tissue core as it is sliced. Measurements can be made after each slice or after a number of slices if average slice thickness is to be determined. The gauge mounts onto the reservoir of the Alabama R&D Tissue Slicer, aligning the gauge's digital micrometer with the slicer's plunger. The micrometer is "zeroed" as it rests on the plunger before a slice is made. Following a cutting cycle, the micrometer takes a reading to measure the decrease in the height of the core. That decrease equals the thickness of the slice which is shown in microns on the micrometer's digital display.
Advantages:
- Measures with an accuracy of 10 microns.
- Slices do not have to be touched by the operator.
- Measurements made within 10 seconds.
- Prevents operator's bias.
- Slices are not mechanically damaged or contaminated by the instrument.
MD2701 - TISSUE SLICE THICKNESS GAUGE |
 |
|
|
| |
|
| |
|
|
|
